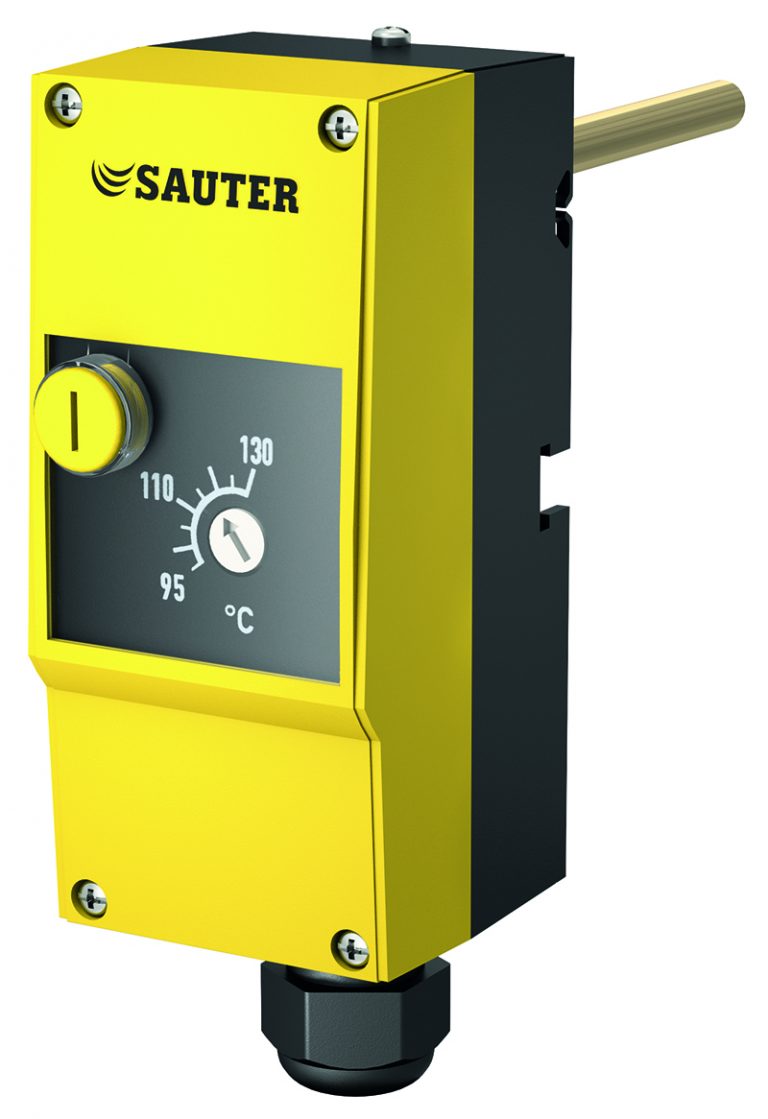

Universal thermostat
TUC
How energy efficiency is improved
Control, monitoring and limiting according to needs and with no auxiliary energy.
Features
-
Regulates and monitors the temperature of liquids in baths, containers, pipes and ducts
-
Variants as temperature monitors (TW), safety temperature monitors (STW), temperature limiters (TB) or safety temperature limiters (STB)
-
Thermostat with remote sensor
-
Clamp-on thermostat
-
Capillary tube thermostat with or without thermowell
-
Double thermostat, e.g. as TW and STB
-
Certified as per EN 14597 (TUC207F003 and TUC407F001, TUC407F002)
-
As per PED 2014/68/EU classified as cat. IV (TUC207F003, TUC407F001 and TUC407F002)
-
The shift in the change-over point is minimised due to the temperature compensation.
-
Thermowell 100 mm supplied (max. 12 bar)
Data sheets
Fitting Instructions
Declaration on materials and environment
Brochures
TUC: Universal thermostat
pdf : 1 MB
pdf
Universal-Thermostat
pdf : 2 MB
pdf
MD TUC
PDF : 287 KB
PDF
Flyer 2-Point Controllers and Sensors
pdf : 1 MB
pdf
