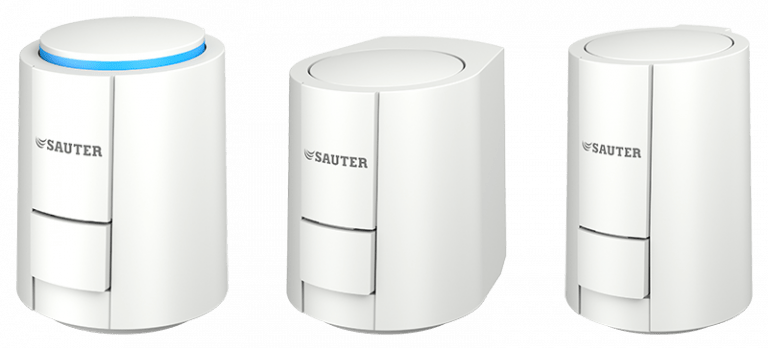

Thermal actuator for unit valves with stroke indicator
AXT 301, 311
How energy efficiency is improved
Reliable actuation in efficient control systems
Features
-
Actuation of unit valves and valves in surface heating and cooling systems as well as fan coils
-
Low-force fitting on the valve using adapter ring
-
NC “normally closed” and NO “normally open” versions
-
NC version with first-open function
-
Adaptation to valve using plastic adapter M30 × 1.5 or M28 × 1.5
-
Max. closing force 125 N
-
With 230 V or 24 V thermal expansion element
-
Large visible and tactile position indicator
-
Low-noise and maintenance-free
-
Contemporary design
-
High functional quality and service life
-
Version with integrated auxiliary contact
-
Standard version with 1-metre cable permanently connected
-
Version with 2 m or 5 m plug-in cable
-
Can be mounted in any position, even suspended under the valve
Data sheets
Fitting Instructions
Declaration on materials and environment
Other documents
Brochures
AXT 301: Thermal actuator for unit valves, with stroke indicator
pdf : 1 MB
pdf
MV AXT3 No/Nc
pdf : 1 MB
pdf
P100019941_A_AXT301HF_Sauter
pdf : 255 KB
pdf
MD AXT3 - En
PDF : 316 KB
PDF
Poster valves and actuators - 2023
pdf : 1 MB
pdf
Valves and actuators
pdf : 3 MB
pdf
