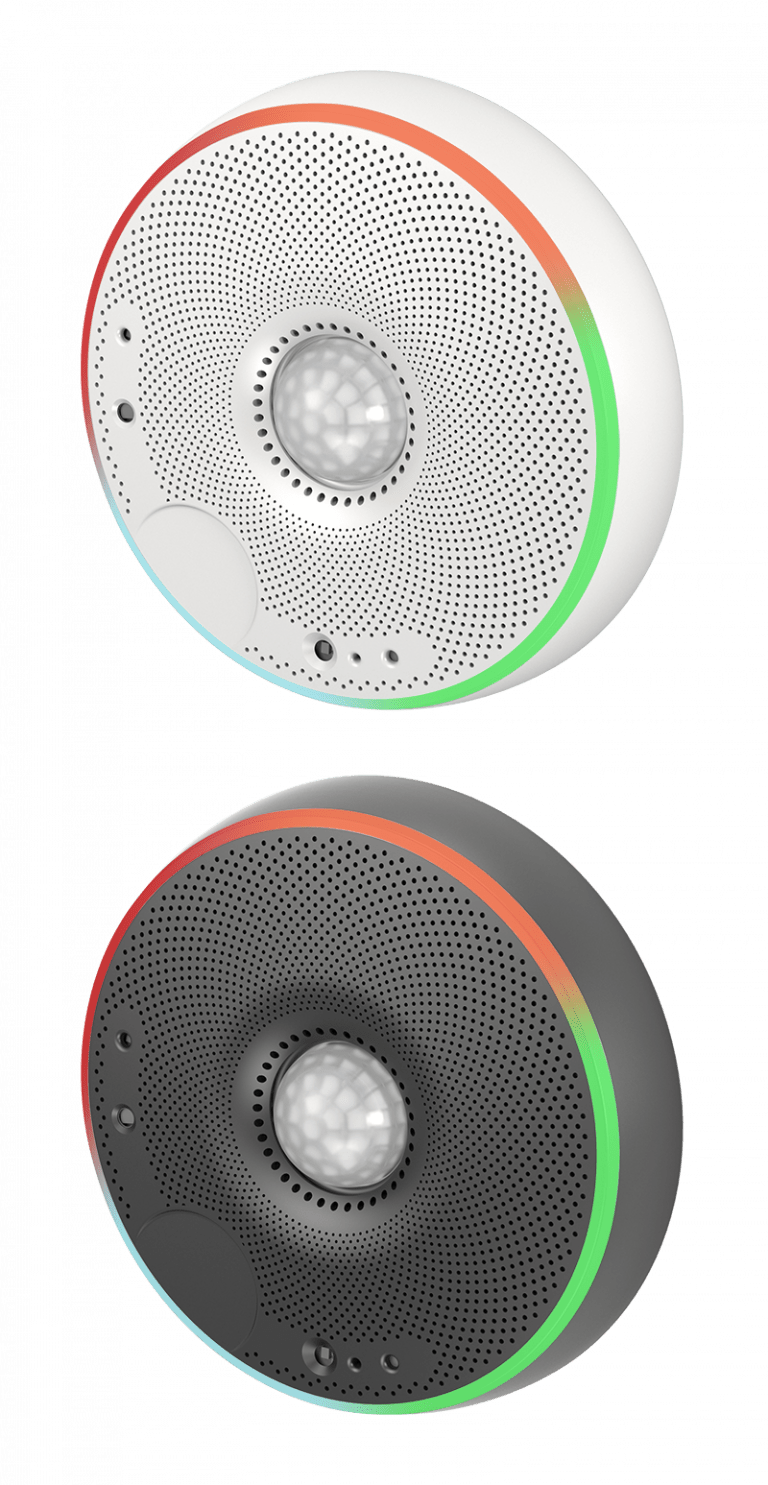

Smart Sensor viaSens116/196
FMS 116, 196
How energy efficiency is improved
Smart multi-sensors in a mesh network for recording movement/presence, brightness, temperature, humidity, air quality and sound pressure levels in rooms or room zones for energy-optimising room automation and for good, pleasant room air.
Features
-
Measurement of indoor air quality (IAQ), such as temperature, humidity and air quality (VOC)
-
Measurement of indoor environment quality (IEQ), such as motion/presence, brightness and sound pressure level
-
Sensor values can be linked together for more precise information on the state of the room (sensor fusion)
-
For ceiling mounting (recessed/surface-mounted)
-
Minimal sensor wiring thanks to Bluetooth® mesh network
-
Controllable coloured LED ring for displaying the room status to room users
-
Parameterisable animation profiles for LED ring, e.g. room reserved/available, room air quality good/bad, room ready for cleaning, etc.)
-
Bluetooth Beacon function for locating the room user with a smartphone and optimised use of SAUTER Mobile Building Services (Mobile Room Control app)
-
Simple integration into the SAUTER automation system with viaSens196
-
For up to 16 sensors for an ecos504/505 room controller
-
Complete commissioning with CASE Suite and Bluetooth smartphone app
-
Meshing of up to 15 viaSens116 sensors via Bluetooth mesh technology to the viaSens196 sensor gateway
-
IoT ready thanks to encrypted MQTT communication in the viaSens196 as an MQTT client
Smart Sensor viaSens now with CO2 sensor
Product Introduction: Smart Sensor viaSens
