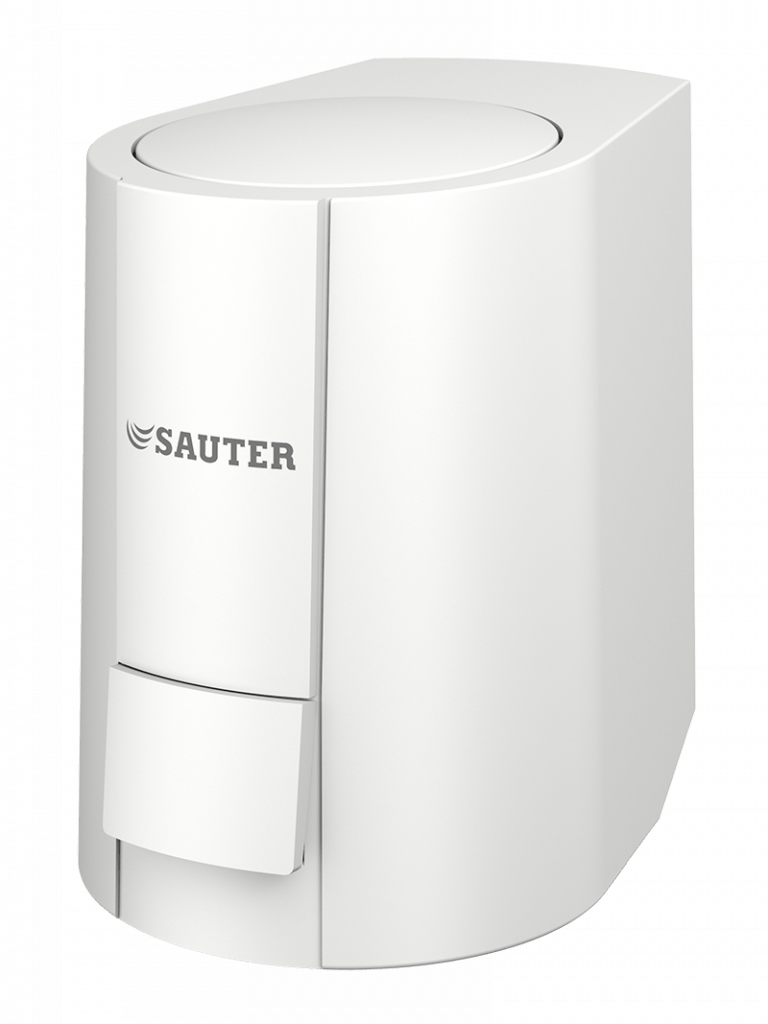

Continuous thermal actuator for unit valves with stroke indicator
AXS 315S
How energy efficiency is improved
Reliable actuation in efficient control systems
Features
-
Actuation of unit valves and valves in surface heating and cooling systems as well as fan coils
-
First-open function for low-force fitting on the valve using adapter ring
-
NC “normally closed” and NO “normally open” versions
-
NC version with first-open function
-
Adaptation to valve using plastic adapter M30 × 1.5 or M28 × 1.5
-
Max. closing force 125 N
-
With 24 V thermal expansion element
-
Large visible and tactile position indicator
-
Low-noise and maintenance-free
-
Contemporary design
-
High functional quality and service life
-
Version with 1m, 2m or 5m plug-in cable
-
PVC or halogen-free cable, with or without position feedback, available as an accessory
-
Can be mounted in any position, even suspended under the valve
