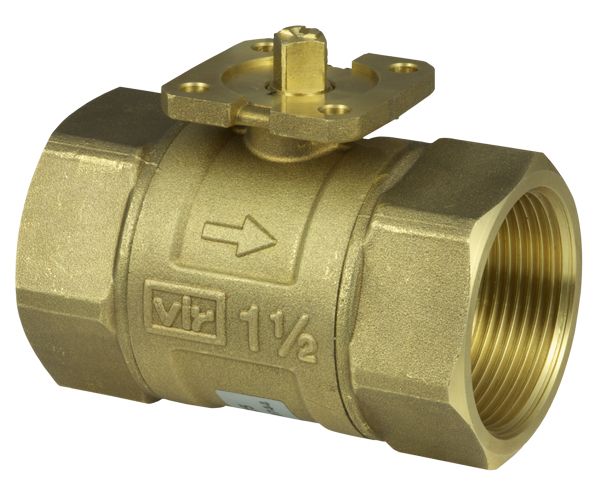

2-way regulating ball valve with female thread, PN 40
VKR
How energy efficiency is improved
Efficiency means precise control and working with minimum leakage
Features
-
2-way regulating ball valve for continuous control of cold and hot water in closed circuits
-
In combination with valve actuators AKM 105(S), 115(S), 115SA and AKF 112, 113(S) as a control unit
-
Equal-percentage ball valve characteristic; control contour in the ball directly integrated
-
Characteristic can be set with SUT rotary actuator (SAUTER Universal Technology) to linear or quadratic
-
Spindle with large sliding surface and PTFE glide ring
-
Low torque due to collar mounted on O-ring
-
Ball valve with female thread as per ISO 7/1 Rp or NPT
-
Body made of DZR (dezincification-resistant) cast brass
-
Spindle made of DZR brass with PTFE glide ring
-
Ball made of DZR brass, chrome-plated and polished surface
-
Spindle seal with double O-ring made of EPDM
-
Strainer and screw fitting available as accessories
-
Water quality as per VDI 2035
